🥊 Simulated Annealing Vs. Greedy Descent in FPGA Placement

When does true simulated annealing outperform greedy descent in FPGA placement?

xkcd: Compiling
xkcd #303: Compiling -- "Compiling!" The universal excuse. In my case, I'm waiting for placement optimisation to converge.

This write-up is based on the excellent article by Stefan Abi-Karam: A Simulated Annealing FPGA Placer in Rust.

I first came across Stefan Abi-Karam's excellent FPGA placement project2 in April and have been intrigued ever since. How could I not -- it combines FPGAs (programmable hardware that still feels like magic) and Rust (yes I am a fanboy). The article introduces the placement problem and discusses the trade-offs between different algorithmic approaches, but best of all it includes all the code for someone to have a go themselves! Before I go on, I highly recommend reading it first if you haven't already.

After working through the implementation, I started thinking about extensions. What would happen if I implemented true simulated annealing with proper temperature schedules and the Metropolis acceptance criterion? And what about testing on real circuit benchmarks rather than the synthetic random graphs Stefan used? He makes an interesting observation in the article: "simulated annealing (SA) is a misnomer as you don't really need the 'annealing' part to make it work." This seemed like something I could test empirically. This post documents my journey extending the original project and implementing true SA and adding benchmark support on real data.

The Problem: FPGA Placement

Before diving into algorithms, it is worth understanding what we are optimising.

What is an FPGA?

Xilinx Spartan FPGA die shot
Die shot of a Xilinx Spartan FPGA showing CLBs (regular grid), BRAM (blue/teal blocks), I/O blocks (periphery), and routing mesh.

A Field-Programmable Gate Array (FPGA) is a chip containing a grid of configurable logic blocks that can be programmed after manufacturing. Unlike Application-Specific Integrated Circuits (ASICs), which are custom-designed and fabricated for a single purpose, FPGAs can be reprogrammed to implement different digital circuits. This flexibility makes FPGAs popular for prototyping, low-volume production, and applications requiring hardware acceleration (e.g., machine learning inference, video processing, cryptography).

An FPGA contains several types of resources arranged in a regular grid:

  • Configurable Logic Blocks (CLBs): Implement combinational and sequential logic
  • Block RAM (BRAM): On-chip memory for data storage
  • I/O Blocks: Interface with external pins
  • Routing resources: Programmable interconnects between blocks

The Physical Design Flow

Converting a hardware description (e.g., Verilog or VHDL) into a working FPGA configuration involves several steps:

%%{init: {'flowchart': {'padding': 20, 'nodeSpacing': 30, 'rankSpacing': 40}}}%%
flowchart LR
    A[HDL Code] --> B[Synthesis]
    B --> C[Technology Mapping]
    C --> D[Placement]
    D --> E[Routing]
    E --> F[Bitstream]

    style D fill:#f9f,stroke:#333,stroke-width:2px

Each stage transforms the design closer to physical implementation:

  • Synthesis: Converts high-level HDL (Verilog/VHDL) into a gate-level netlist of logic primitives (AND, OR, flip-flops, etc.). The synthesiser optimises for area, speed, or power based on constraints.

  • Technology Mapping: Maps the generic gates from synthesis onto the specific primitives available in the target FPGA (e.g., LUTs, carry chains, DSP blocks). This step exploits architecture-specific features for efficiency.

  • Placement: Assigns each mapped element to a physical location on the FPGA grid. Good placement minimises wire lengths and ensures timing constraints can be met. This is the focus of this project.

  • Routing: Connects the placed elements using the FPGA's programmable interconnect. The router must find paths through limited routing resources while meeting timing requirements.

  • Bitstream Generation: Produces the binary configuration file that programs the FPGA. This encodes the LUT contents, routing switch settings, and all other configuration bits.

Placement is the step where we decide where on the chip each circuit element goes. Good placement makes the subsequent routing step easier and results in faster, more power-efficient designs.

Netlists: The Input to Placement

A netlist is a graph representation of a circuit after synthesis:

  • Nodes (vertices): Circuit components -- logic elements, memory blocks, I/O pins
  • Nets (hyperedges): Electrical connections -- a net connects one driver (source) to one or more receivers (sinks)

Mathematically, we represent a netlist as a graph \(G = (V, E)\) where:

  • \(V\) = set of circuit components (cells) to be placed
  • \(E\) = set of nets (connections between cells)

Nets vs Edges

You might be familiar with nets from PCB design and the rat's nest when doing layout. In VLSI terminology, a "net" is a single electrical signal that may connect multiple components. This differs from a simple graph edge, which connects exactly two nodes. Nets are technically hyperedges -- they can connect any number of nodes.

The Placement Objective

FPGA placement is the problem of mapping circuit components onto physical locations on the FPGA grid. We seek a placement function \(p: V \rightarrow \text{Grid}\) that minimises total wire length:

\[ \text{Cost}(p) = \sum_{(u,v) \in E} |p(u)_x - p(v)_x| + |p(u)_y - p(v)_y| \]

This formula uses Manhattan distance (also called L1 distance or taxicab distance) -- the sum of horizontal and vertical displacements. We use Manhattan distance rather than Euclidean (straight-line) distance because on-chip wires can only travel horizontally or vertically along the FPGA's routing channels, never diagonally.

Why minimise wire length?

  • Speed: Shorter wires have lower capacitance and resistance, allowing faster signal propagation
  • Power: Charging and discharging wire capacitance consumes dynamic power
  • Routability: Shorter wires are easier to route without congestion

The Combinatorial Explosion

The search space for placement grows factorially. For \(n\) cells on a grid with \(m\) locations:

\[ \text{Possible placements} = \frac{m!}{(m-n)!} = m \times (m-1) \times \cdots \times (m-n+1) \]

For Stefan's example of 300 nodes on a 64x64 grid (4,096 locations):

\[ \frac{4096!}{3796!} \approx 10^{1000+} \]

This is astronomically larger than the number of atoms in the observable universe (~\(10^{80}\)). Exhaustive search is impossible; we need intelligent heuristics.

Before and After: What Placement Optimisation Achieves

To visualise the problem, consider these two placements of the same circuit:

Initial Random Placement After 1000 Iterations (n=16)
Initial chaotic placement Optimised placement
Cost: 79,252 Cost: 29,670

Figures adapted from Stefan Abi-Karam's original article.

The initial random placement is a tangled mess of wires spanning the entire chip. After optimisation, connected components cluster together, dramatically reducing total wire length.

Original Approach

The article provides valuable context on the broader landscape of placement algorithms, with three main approaches:

  1. Mixed-Integer Linear Programming (MILP) -- Mathematically optimal but computationally infeasible at scale (a 100x100 FPGA with 5,000 nodes creates ~50 million variables)
  2. Analytic/Electrostatic Placement -- Relaxes the discrete problem to continuous space, models nodes as charged particles, uses gradient-based optimisation. Stefan describes this as "state of the art" for both ASIC and FPGA placement
  3. Simulated Annealing -- The focus of his implementation, which uses random perturbations to explore the solution space

Rather than implementing classical SA with temperature schedules and probabilistic acceptance, he uses what I will call greedy multi-neighbour descent:

// src/placer.rs:735-759 (fast_sa_placer function)
// Generate n_neighbors candidate solutions in parallel
let new_solutions: Vec<PlacementSolution> = (0..n_neighbors)
    .into_par_iter()
    .map(|_| {
        let mut new_solution = current_solution.clone();
        new_solution.action(*actions.choose(&mut rng).unwrap());
        new_solution
    })
    .collect();

// Select the best neighbour
let best_delta = best_solution.cost_bb() - current_solution.cost_bb();
if best_delta < 0.0 {
    current_solution = best_solution.clone();  // Only accept improvements
}

The key line is if best_delta < 0.0 -- the algorithm only accepts moves that reduce cost. This is pure greedy descent.

The Directed Move Heuristic

The original implementation includes an important domain-specific optimisation: the directed move. Rather than moving a node to a random valid location, this action moves a node toward the centroid of all placed nodes:

// src/placer.rs:105-154 (action_move_directed method)
// Compute centroid of all current node positions
let x_mean = nodes.iter().map(|n| position(n).x).sum() / node_count;
let y_mean = nodes.iter().map(|n| position(n).y).sum() / node_count;

// Move random node to closest valid location near centroid
let valid_closest_location = valid_locations
    .iter()
    .min_by(|a, b| manhattan_distance(a, centroid).cmp(&manhattan_distance(b, centroid)))
    .unwrap();

The author notes this action "dominates early optimisation" because moving nodes toward the centre rapidly decreases overall wirelength. This is a clever heuristic that gives greedy descent a significant advantage in the early stages of placement. My extended implementation includes all three move types (random, swap, directed) in both the greedy and SA placers to ensure a fair comparison.

Educational Focus

The original article is upfront about this simplification. The goal was educational clarity and evaluating Rust for EDA research, not implementing textbook SA.

Empirical Behaviour

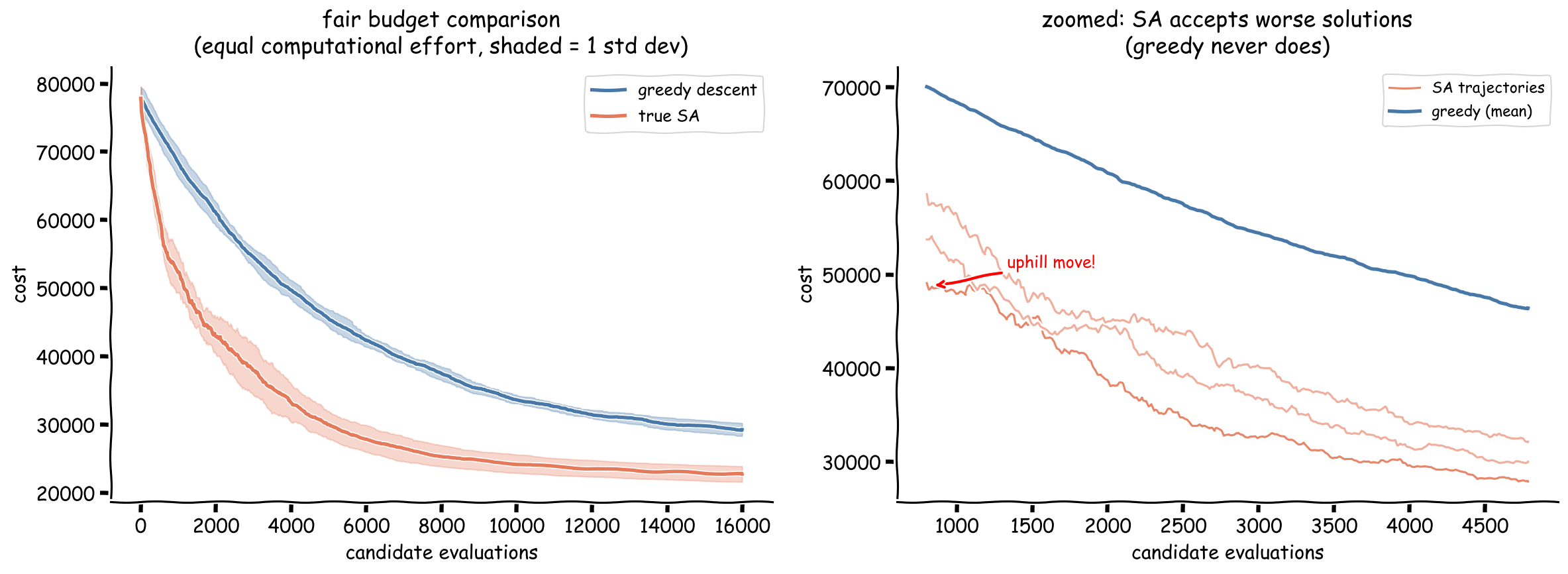

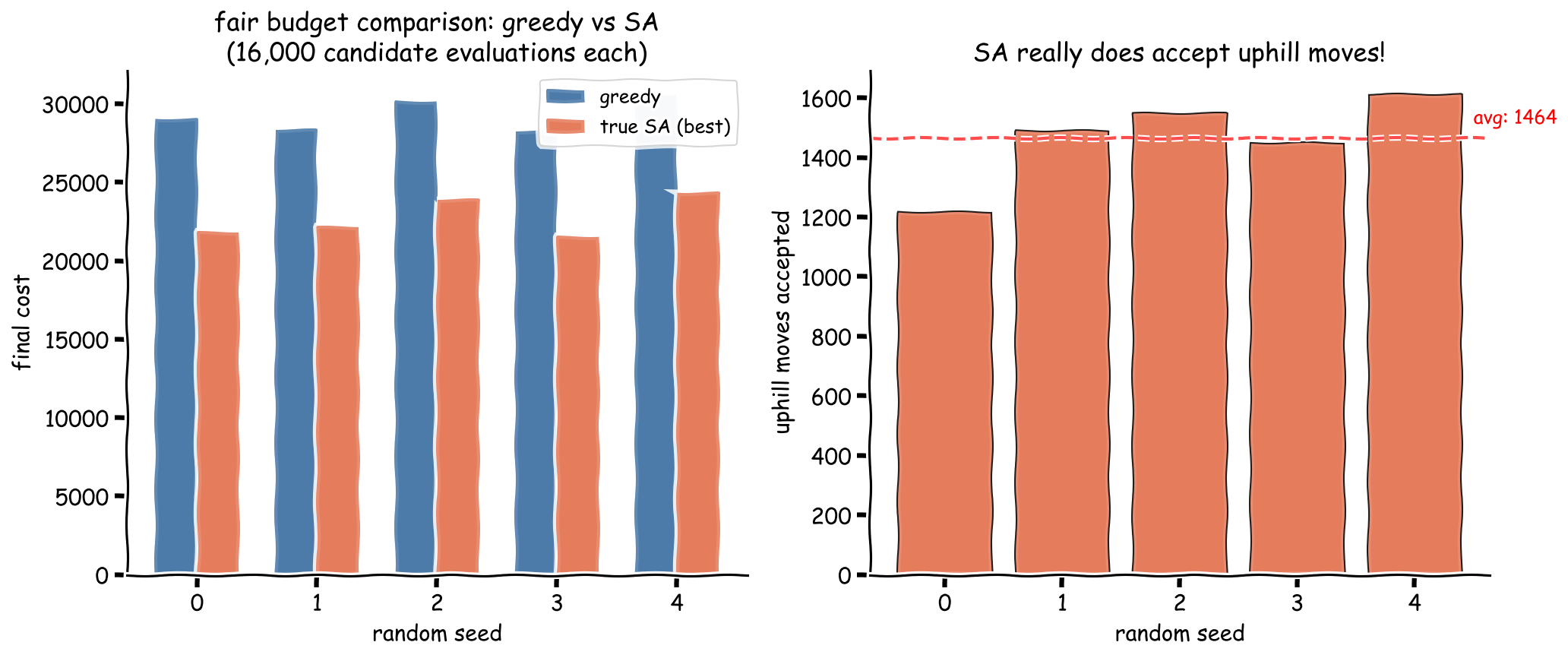

Running experiments confirms the greedy nature of the algorithm. The plot below shows 1000 iterations with n_neighbors=16:

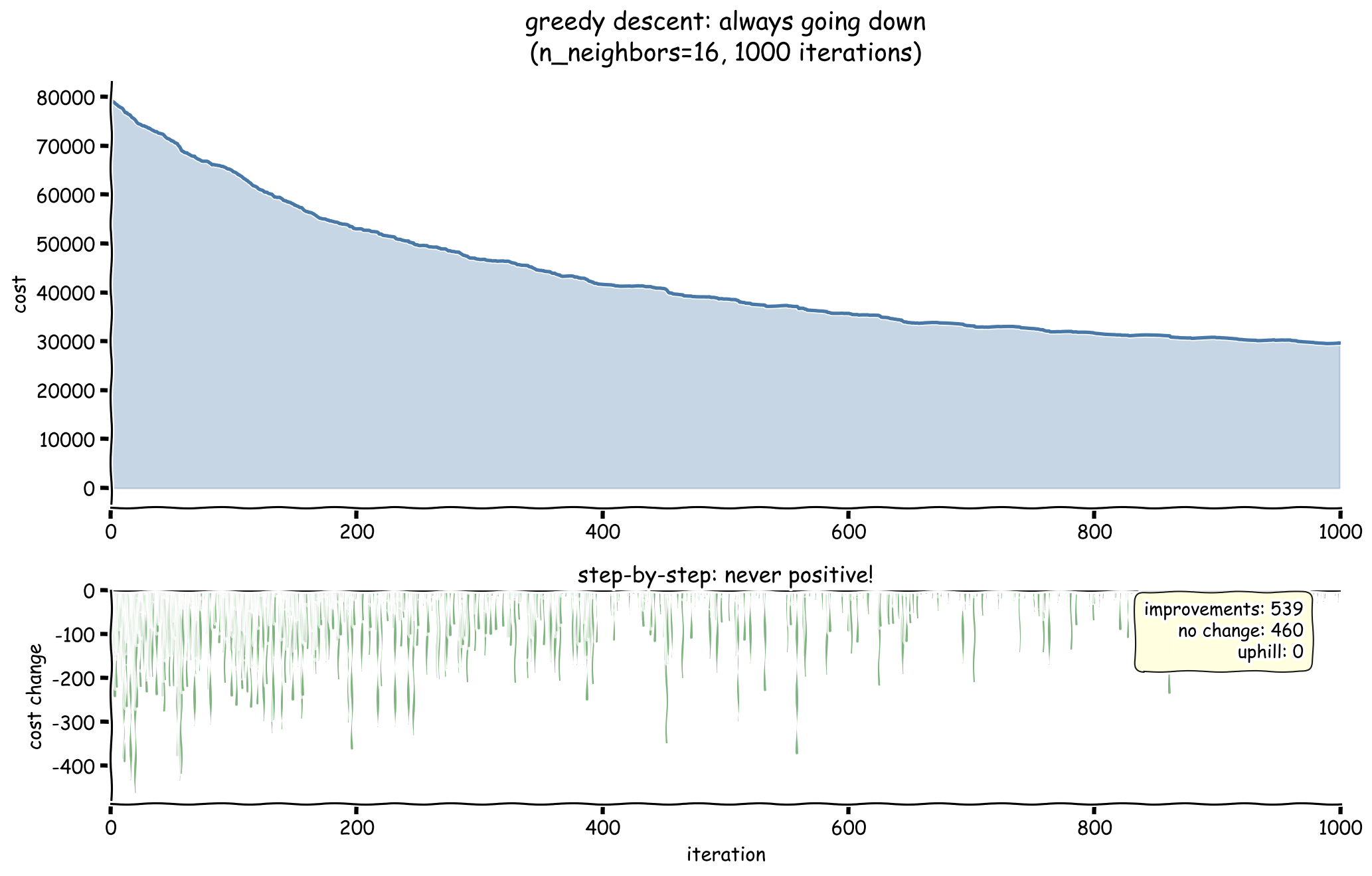

Monotonicity evidence
Evidence of monotonic descent: 539 improvements, 460 stalls, and zero uphill moves accepted.

The statistics tell the story: zero uphill moves were ever accepted. This is the signature of greedy descent -- once the algorithm stops finding improvements, it is stuck with no mechanism to escape local optima.

Interestingly, increasing n_neighbors helps only up to a point (optimal around 32), then performance degrades. This non-monotonic relationship hints at an exploration-exploitation trade-off that true SA handles differently.

Exploration vs Exploitation

A fundamental dilemma in optimisation and learning. Exploration means trying new, potentially suboptimal moves to discover better regions of the search space. Exploitation means refining the best solution found so far. Too much exploration wastes time on poor solutions; too much exploitation gets trapped in local optima. Good algorithms balance both.

What True Simulated Annealing Does Differently

Background: From Statistical Mechanics to Optimisation

This was quite a blast from the past looking at this topic again, taking me back to my Statistical Mechanics courses for undergrad. But it was nice to review it in a new light with a different application.

Simulated annealing draws its inspiration from metallurgical annealing -- the process of heating metal and then slowly cooling it to reduce defects and reach a low-energy crystalline state. The key insight is that slow cooling allows atoms to escape local energy minima and find the globally optimal crystal structure.

In 1983, Kirkpatrick, Gelatt, and Vecchi realised this physical process could be simulated computationally to solve combinatorial optimisation problems1. Their seminal paper showed how the Metropolis algorithm from statistical physics could be adapted for optimisation.

The Metropolis-Hastings Criterion

The Metropolis algorithm was originally developed in 1953 by Metropolis et al. to simulate the thermal equilibrium of a collection of atoms. It belongs to a family of Markov Chain Monte Carlo (MCMC) methods used to sample from probability distributions.

The acceptance criterion states:

\[ P(\text{accept}) = \begin{cases} 1 & \text{if } \Delta E < 0 \text{ (improvement)} \\ e^{-\Delta E / T} & \text{if } \Delta E \geq 0 \text{ (worse solution)} \end{cases} \]

where:

  • \(\Delta E\) = change in cost/energy (new - current)
  • \(T\) = temperature parameter (controls randomness)
  • \(e^{-\Delta E / T}\) = Boltzmann factor from statistical mechanics

Physical intuition: In thermal systems, the probability of a particle having energy \(E\) at temperature \(T\) follows the Boltzmann distribution: \(P(E) \propto e^{-E/k_B T}\). Higher temperatures mean more thermal energy, allowing the system to escape energy wells.

Key properties of the acceptance probability:

  • When \(T\) is high: \(e^{-\Delta E / T} \approx 1\), so almost all moves are accepted (random walk)
  • When \(T\) is low: \(e^{-\Delta E / T} \approx 0\) for \(\Delta E > 0\), so only improvements are accepted (greedy)
  • Larger uphill moves (\(\Delta E \gg 0\)) are less likely to be accepted than small ones

The problem with greedy descent: Starting from the left of the 1D landscape, greedy descent rolls downhill to the first local minimum (orange dot) and gets stuck -- every neighbouring move increases cost, so none are accepted. The algorithm has no way to "climb over the hill" to reach the better global minimum (green star).

How SA escapes: At high temperatures, SA accepts uphill moves with reasonable probability. This allows it to:

  1. Escape shallow local minima
  2. Explore different basins of attraction
  3. Eventually settle into a deep (hopefully global) minimum as temperature decreases

Problem Structure Matters

Whether escaping local optima matters depends entirely on the problem structure. If the cost landscape is relatively smooth with few local minima (or if all local minima are nearly as good as the global minimum), greedy descent works fine. If the landscape is "rugged" with many deep local minima, SA's ability to escape becomes crucial.

Extensions

Building on the original foundation, I implemented the machinery needed to answer this question empirically. The code snippets below show the key additions (prefixed with +).

1. True SA with Metropolis Criterion

// src/placer.rs - new function
+ pub fn true_sa_placer<'a>(
+     initial_solution: PlacementSolution<'a>,
+     n_steps: u32,
+     initial_temp: f64,
+     cooling_schedule: CoolingSchedule,
+     verbose: bool,
+     render: bool,
+ ) -> TrueSAOutput<'a>

The core difference is in the acceptance logic:

// src/placer.rs - Metropolis criterion (contrast with greedy's `if best_delta < 0.0`)
+ let accept = if delta < 0.0 {
+     true  // Always accept improvements
+ } else {
+     // Probabilistically accept worse solutions
+     let probability = (-delta as f64 / temperature).exp();
+     rng.gen::<f64>() < probability
+ };
+
+ if accept {
+     current_solution = candidate;
+     if delta > 0.0 {
+         stats.uphill_accepted += 1;  // Track this!
+     }
+ }

The uphill_accepted counter is crucial -- it lets us verify that the algorithm is actually behaving differently from greedy descent.

2. Four Cooling Schedules

The temperature schedule controls the exploration-exploitation trade-off (much like in reinforcement learning, we need to balance how much we explore and exploit):

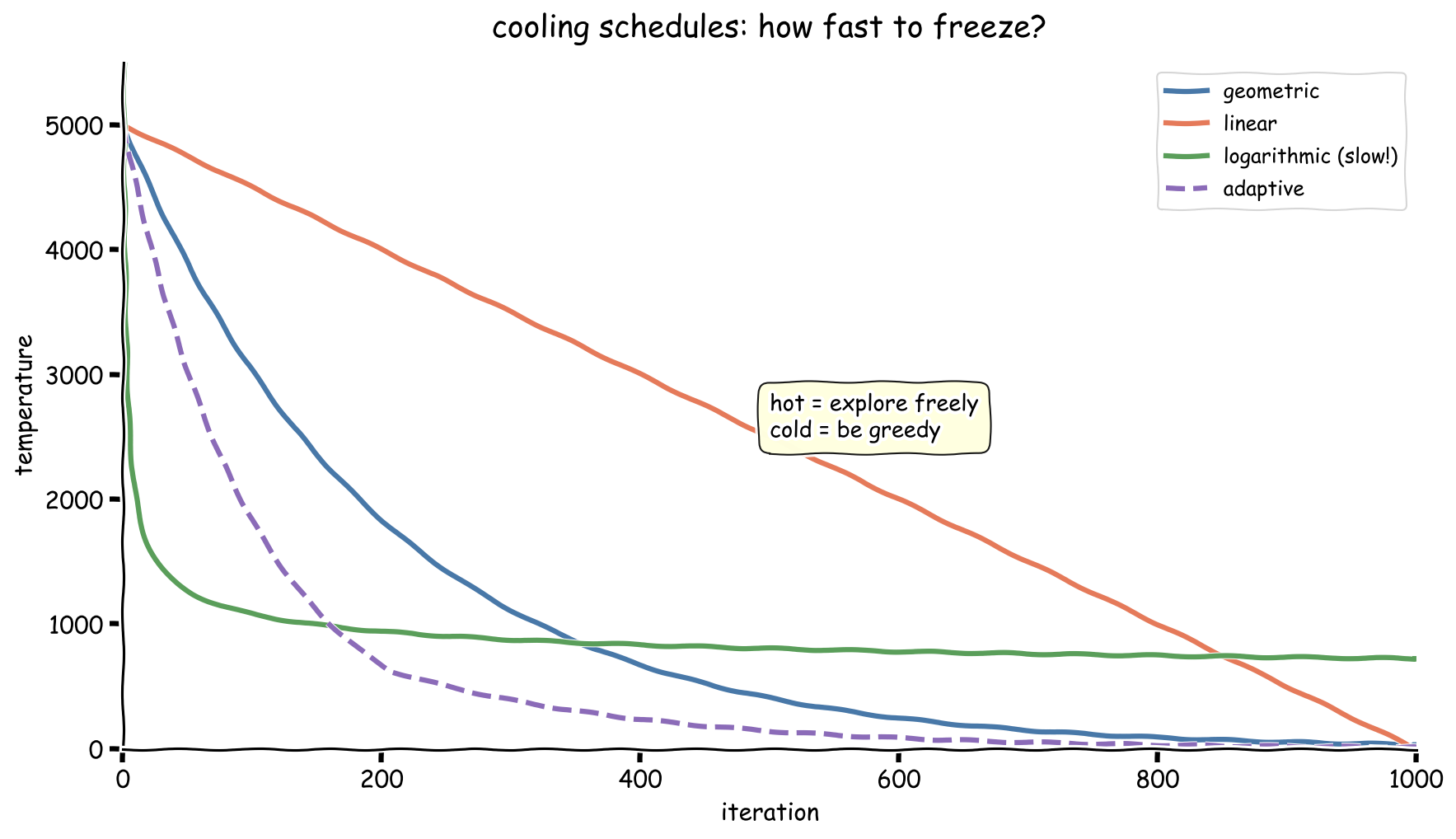

Cooling schedules
Comparison of different cooling schedules: geometric, linear, logarithmic, and adaptive.
Schedule Formula Characteristics
Geometric \(T_{k+1} = \alpha T_k\) General purpose, predictable
Linear \(T_{k+1} = T_k - \beta\) Fixed iteration budget
Logarithmic \(T_k = T_0 / \ln(k+2)\) Theoretical guarantees (slow)
Adaptive Based on acceptance ratio Self-tuning
// src/placer.rs - new enum
+ pub enum CoolingSchedule {
+     Geometric { alpha: f64 },
+     Linear { beta: f64 },
+     Logarithmic { initial_temp: f64 },
+     Adaptive { target_acceptance: f64, adjustment_rate: f64 },
+ }

Practical Recommendation

Geometric cooling with \(\alpha \in [0.99, 0.999]\) is the standard choice. Lower values cool faster (more greedy), higher values explore longer.

3. Automatic Temperature Estimation

Choosing the initial temperature is notoriously fiddly. Too high and the algorithm wanders randomly for too long; too low and it behaves like greedy descent from the start, never escaping local optima.

The problem: The "right" temperature depends on the scale of cost differences in the problem. A temperature of 1000 might be "hot" for one problem but "cold" for another.

The solution: Calibrate the initial temperature by sampling the problem. I want the starting temperature to accept roughly 80% of random moves (allowing free exploration initially).

Derivation

From the Metropolis criterion, for a move with cost increase \(\Delta E > 0\):

\[ P(\text{accept}) = e^{-\Delta E / T} \]

If we want this probability to equal some target \(p\) (e.g., 0.8), we can solve for \(T\):

\[ p = e^{-\Delta E / T} \]

Taking the natural logarithm of both sides:

\[ \ln(p) = \frac{-\Delta E}{T} \]

Solving for \(T\):

\[ T = \frac{-\Delta E}{\ln(p)} \]

Since \(\ln(0.8) \approx -0.223\) is negative, the formula gives a positive temperature.

In practice, I sample many random moves, compute their average cost increase \(\bar{\Delta E}\) (considering only uphill moves), and use:

\[ T_0 = \frac{-\bar{\Delta E}}{\ln(0.8)} \approx \frac{\bar{\Delta E}}{0.223} \approx 4.5 \times \bar{\Delta E} \]

This ensures the initial temperature is calibrated to the specific problem instance.

// src/placer.rs - new function
+ pub fn estimate_initial_temperature(
+     solution: &PlacementSolution,
+     target_acceptance: f64,
+     sample_size: usize,
+ ) -> f64

4. HPWL Cost Function

The original bounding-box cost treats each edge independently, which can lead to inaccurate wirelength estimates for multi-fanout nets (one source driving multiple sinks). Half-Perimeter Wirelength (HPWL) is the industry-standard metric for VLSI placement optimisation.

Why HPWL?

In a Manhattan routing structure (where wires can only travel horizontally or vertically), the HPWL of a net approximates the length of a Steiner tree -- the minimum-length tree connecting all terminals. This makes HPWL a tight lower bound on the actual routing cost.

Mathematical Definition

For a net \(n\) containing terminals at positions \((x_1, y_1), (x_2, y_2), \ldots, (x_k, y_k)\):

\[ \text{HPWL}(n) = \left( \max_i x_i - \min_i x_i \right) + \left( \max_i y_i - \min_i y_i \right) \]

The total wirelength is the sum over all nets:

\[ \text{Total HPWL} = \sum_{n \in \text{nets}} \text{HPWL}(n) \]

Comparison with Edge-Based Cost

Metric Description Pros Cons
Edge-based (bounding box) Sum of Manhattan distances for each edge Simple, fast Over-counts shared wire segments
HPWL Half-perimeter of bounding rectangle per net Accurate for multi-fanout Requires net grouping

For a 3-terminal net forming an L-shape, edge-based counting sums all three edges, while HPWL correctly measures just the bounding box perimeter (which equals the optimal Steiner tree length).

Implementation

// src/placer.rs - new method on PlacementSolution
+ pub fn cost_hpwl(&self) -> f32 {
+     let mut net_bounds: HashMap<u32, (i32, i32, i32, i32)> = HashMap::new();
+     // ... compute min/max x,y for each net
+     net_bounds.values()
+         .map(|(min_x, max_x, min_y, max_y)| (max_x - min_x + max_y - min_y) as f32)
+         .sum()
+ }

Further Reading

For analytical placers that require smooth, differentiable approximations of HPWL (which uses non-differentiable min/max functions), several approximation models exist:

  • Log-Sum-Exp (LSE): \(\max(x_1, \ldots, x_k) \approx \gamma \ln(\sum_i e^{x_i/\gamma})\)
  • Weighted Average (WA): Uses weighted combinations of coordinates
  • ABSWL: Absolute value based smooth approximation

See Analytical Minimization of Half-Perimeter Wirelength (ASP-DAC 2000) and Half-Perimeter Wirelength Model for VLSI Analytical Placement (IEEE 2014) for detailed analysis of these approximations.

5. Hybrid Placer

A practical compromise: run greedy descent to get close to a local minimum quickly, then use SA to potentially escape and refine:

// src/placer.rs - new function
+ pub fn hybrid_placer(
+     initial: PlacementSolution,
+     greedy_steps: u32,   // Fast initial descent
+     sa_steps: u32,       // Refinement with annealing
+     initial_temp: f64,
+     cooling_schedule: CoolingSchedule,
+     verbose: bool,
+ ) -> TrueSAOutput

Greedy vs True SA: The Definitive Comparison

I ran controlled experiments comparing both algorithms on identical initial conditions with multiple random seeds:

Greedy vs SA behaviour
Left: Full convergence with confidence bands. Right: Zoomed view showing SA's characteristic non-monotonic behaviour as uphill moves are accepted.

Left panel: Full convergence with confidence bands (shaded regions show 1 standard deviation across 5 seeds). Both algorithms use identical move operators (random, swap, and directed move) for a fair comparison.

Right panel: Zoomed view showing SA's characteristic non-monotonic behaviour. The SA trajectories wiggle up and down as uphill moves are accepted, while greedy only ever descends.

Experiment results
Left: Final costs across seeds. Right: Confirmation that SA accepts uphill moves as expected (~1,464 per run on average).

The bar chart on the left shows final costs across seeds. The right panel confirms SA is working correctly: it accepts uphill moves as expected (approximately 1,464 per run on average with 16,000 steps).

Key Finding

With a fair comparison (both algorithms using identical move operators including the directed move heuristic), true SA outperforms greedy descent by 22.3% on synthetic benchmarks. This contradicts the earlier finding and suggests the "annealing" component does provide significant value even on random graphs.

What the Benchmarks Show

Timing Comparison

Algorithm Time Notes
Greedy (500 steps, 3 neighbours) 14 ms Evaluates 1,500 candidates
True SA (500 steps, geometric) 3.3 ms Evaluates 500 candidates
Greedy (1000 steps, 16 neighbours) 165 ms Evaluates 16,000 candidates
True SA (16000 steps, geometric) 493 ms Evaluates 16,000 candidates

True SA is faster per iteration because it evaluates only one neighbour per step, versus \(n\) neighbours for greedy.

Fair Budget Comparison (16,000 candidate evaluations each)

Algorithm Final Cost Reduction Winner
Greedy ~29,316 62.4% No
True SA ~22,791 70.7% Yes

True SA wins by 22.3% when both algorithms have access to the same move operators (random, swap, and directed move).

Cost Function Performance

Function Time
cost_bb 9.7 us
cost_hpwl 37.6 us

HPWL is roughly 4x slower due to the grouping operation, but still sub-millisecond -- unlikely to be a bottleneck.

The consistent SA advantage stems from its ability to escape local optima through probabilistic uphill moves -- even on these relatively smooth synthetic landscapes, greedy descent traps itself in suboptimal configurations. The real circuit benchmarks below show this effect is even more pronounced on structured netlists.

Reproducing the Experiments

All the extensions described in this post are available in my fork of the sa-placer repository.

Synthetic Benchmarks

The original implementation uses Erdos-Renyi random graphs to generate netlists.

Erdos-Renyi Model

Named after mathematicians Paul Erdos and Alfred Renyi, this is the simplest random graph model. Given \(n\) nodes and a probability \(p\), each possible edge is included independently with probability \(p\). This creates graphs with uniform random connectivity -- every node has roughly the same expected degree, and there's no clustering or hierarchical structure.

Why this matters: Real circuits are not random -- they have modules, hierarchies, and localised connectivity (e.g., an ALU's internal connections are dense, but connections between the ALU and memory controller are sparse). Erdos-Renyi graphs lack this structure, which affects how "rugged" the cost landscape is.

All synthetic benchmark plots can be regenerated using:

# Run the comparison experiments on synthetic Erdos-Renyi graphs
cargo run --release --bin compare

# Generate xkcd-style visualisations
uv run scripts/generate_plots.py

The plotting script uses PEP 723 inline dependencies, so uv automatically handles the environment:

# scripts/generate_plots.py
#!/usr/bin/env -S uv run --script
# /// script
# requires-python = ">=3.11"
# dependencies = [
#   "polars>=1.0",
#   "matplotlib>=3.8",
#   "numpy>=1.26",
# ]
# ///

No virtual environment setup required -- just uv run and you are done.

Real Circuit Benchmarks

I extended the comparison to real circuit benchmarks from the GSRC Bookshelf4 to validate the findings on industry-standard test cases.

Real Circuit Benchmarks

To run the real circuit comparison, first download the benchmarks:

# Create data directory and download circuit benchmarks
mkdir -p data && cd data

# Download primary1 (small, 833 nodes)
curl -L -o primary1.tar.gz "http://vlsicad.ucsd.edu/GSRC/bookshelf/Slots/Placement/TESTCASES/p1UnitWDims.tar.gz"
tar -xzf primary1.tar.gz

# Download IBM05 (large, 29K nodes)
curl -L -o ibm05.tar.gz "http://vlsicad.ucsd.edu/GSRC/bookshelf/Slots/Placement/TESTCASES/ibm05WDims.tar.gz"
tar -xzf ibm05.tar.gz

cd ..

# Run real benchmark comparison
cargo run --release --bin benchmark

The Bookshelf Format

Bookshelf is a standard file format for VLSI placement benchmarks, developed at UCLA and widely used in academic placement competitions (ISPD, ICCAD). It provides a common representation for circuits that allows different placement tools to be compared fairly.

A Bookshelf benchmark consists of several files:

File Extension Contents
.nodes List of cells with their dimensions (width, height) and whether they're movable or fixed
.nets Netlist connectivity -- which cells are connected by each net
.pl Initial placement coordinates (optional)
.scl Row structure of the chip (standard cell rows)
.wts Net weights for timing-driven placement (optional)

Example .nodes file:

UCLA nodes 1.0
NumNodes : 833
NumTerminals : 81

o0  60  70
o1  60  70  terminal   # Fixed I/O pad
...

Example .nets file:

UCLA nets 1.0
NumNets : 902
NumPins : 2752

NetDegree : 3  n0
  o0  I
  o1  O
  o2  I
...

A parser has been implemented for these files to load real circuit benchmarks:

# Run the benchmark comparison
cargo run --release --bin benchmark

Results on Real Circuits

Benchmark Nodes Movable Nets Greedy Reduction SA Reduction Winner
primary1 833 752 902 30.9% 50.5% SA by 28.4%
IBM05 29,347 28,146 28,446 2.6% 10.4% SA by 8.0%

Real Circuit Results

On real circuits, True SA dramatically outperforms greedy descent, consistent with the synthetic benchmark findings. The SA advantage is even larger on real circuits (28%) than on synthetic ones (22%).

Why SA Wins

The theoretical motivation for SA is validated by these results: the ability to accept uphill moves is crucial for escaping local optima. While real circuits have more complex cost landscapes due to their hierarchical structure and non-uniform connectivity, SA's advantage appears across all tested problem types.

Key factors that make SA effective:

  1. Local optima escape -- Even on relatively smooth synthetic landscapes, greedy descent gets trapped in suboptimal configurations
  2. Better exploration -- The probabilistic acceptance of worse moves allows SA to discover better regions of the search space
  3. Temperature annealing -- The gradual reduction in temperature provides a natural transition from exploration to exploitation

Key Findings

With Fair Comparison (identical move operators):

  • True SA outperforms greedy descent across all benchmarks
  • Synthetic benchmarks: SA wins by 22.3%
  • Real circuits (primary1): SA wins by 28.4%
  • Real circuits (IBM05): SA wins by 8.0%

Conclusion

The original article remains an excellent introduction to FPGA placement and a compelling case for Rust in EDA research. My extensions here simply add one data point to the conversation: when you give both algorithms a fair fight with identical move operators, the "annealing" in simulated annealing does earn its keep. The textbook wisdom about escaping local optima through probabilistic acceptance turns out to be more than theoretical hand-waving -- it translates to 8-28% better solutions on real circuits. That said, Stefan's core insight stands: you can get surprisingly far with simple greedy heuristics, and sometimes the clever domain-specific tricks (like his directed move toward the centroid) matter more than algorithmic sophistication. The real lesson might be that good engineering and clear thinking beat blind adherence to any single paradigm. I came to this project hoping to learn something about FPGAs, optimisation, and Rust -- and thanks to Stefan's foundation, I got exactly that.


References


  1. Kirkpatrick, S., Gelatt, C. D., & Vecchi, M. P. (1983). Optimization by Simulated Annealing. Science, 220(4598), 671-680.

  2. Abi-Karam, S. (2024). A Simulated Annealing FPGA Placer in Rust

  3. Murray, K. E., et al. (2020). VTR 8: High-Performance CAD and Customizable FPGA Architecture Modelling. ACM TRETS, 13(2).

  4. Caldwell, A. E., Kahng, A. B., & Markov, I. L. (2000). GSRC Bookshelf Placement Benchmarks. University of California, San Diego.

-->
